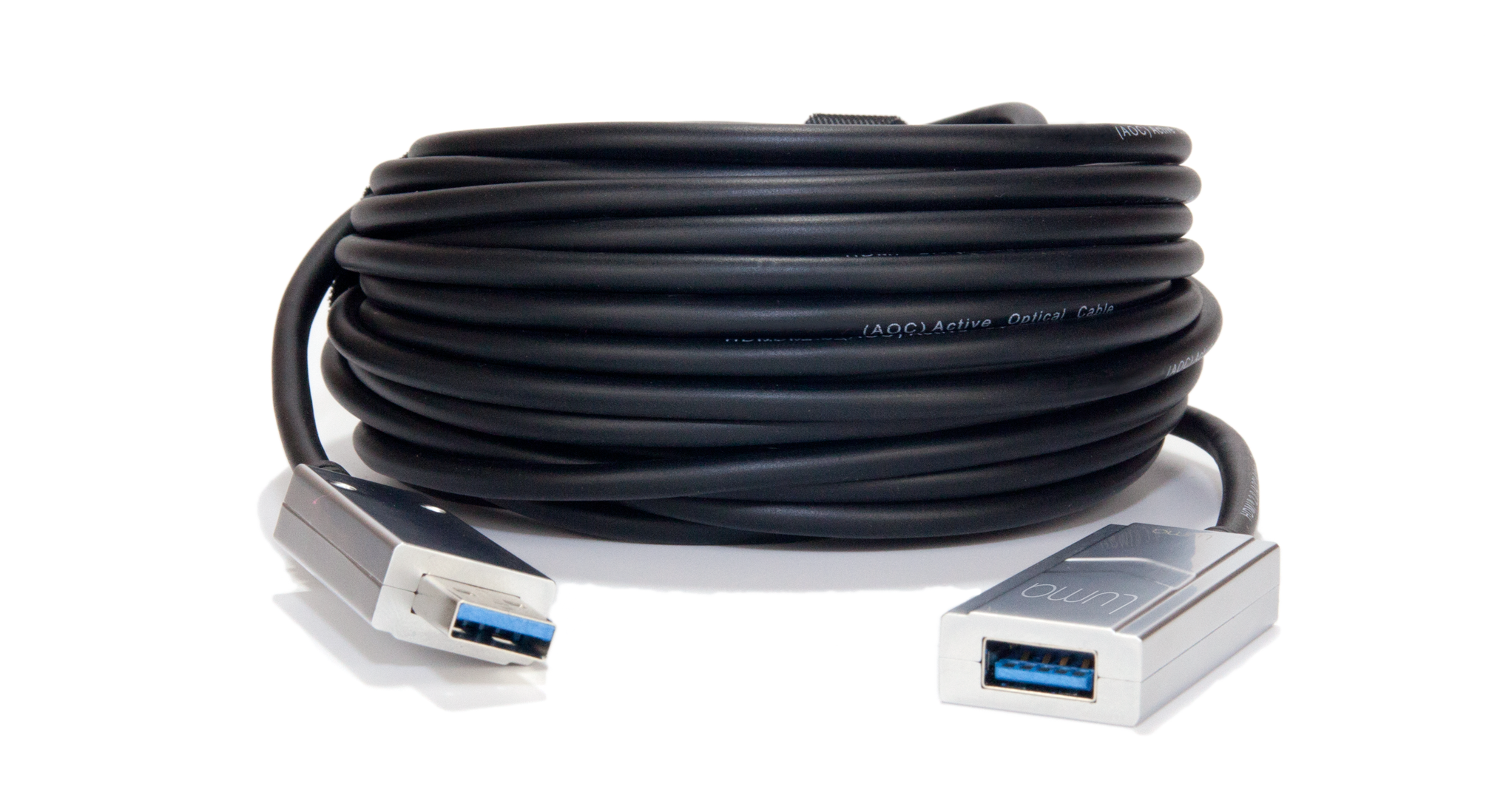

Luma USB Active Optical Cable

Luma USB Active Optical Cable provides an EMI-free, SuperSpeed 5Gbps, USB 3.2 extension between devices at lengths up to 100' between devices. Perfect for use when a data device may be located at a distance from a computer and data throuput and error-free transmission is essential.

Documents

USB Connection Diagram

Specifications

Data rate: 10 Gbps
Version: USB 3.2
Power: 5V nominal
Connectors: Type-A Male - Type-A Female
Connector (male): 1.75” x .75” x .375”
44.5 x 19 x 9.5 mm
Connector (female): 2.0” x .875” x .375”
50.8 x 22.2 x 9.5 mm
Cable diameter: 5mm
Cable bend radius: 20mm
Cable jacket rating: CL2

Available lengths

35'
40'
50'
60'
80'
100'
