luma dp

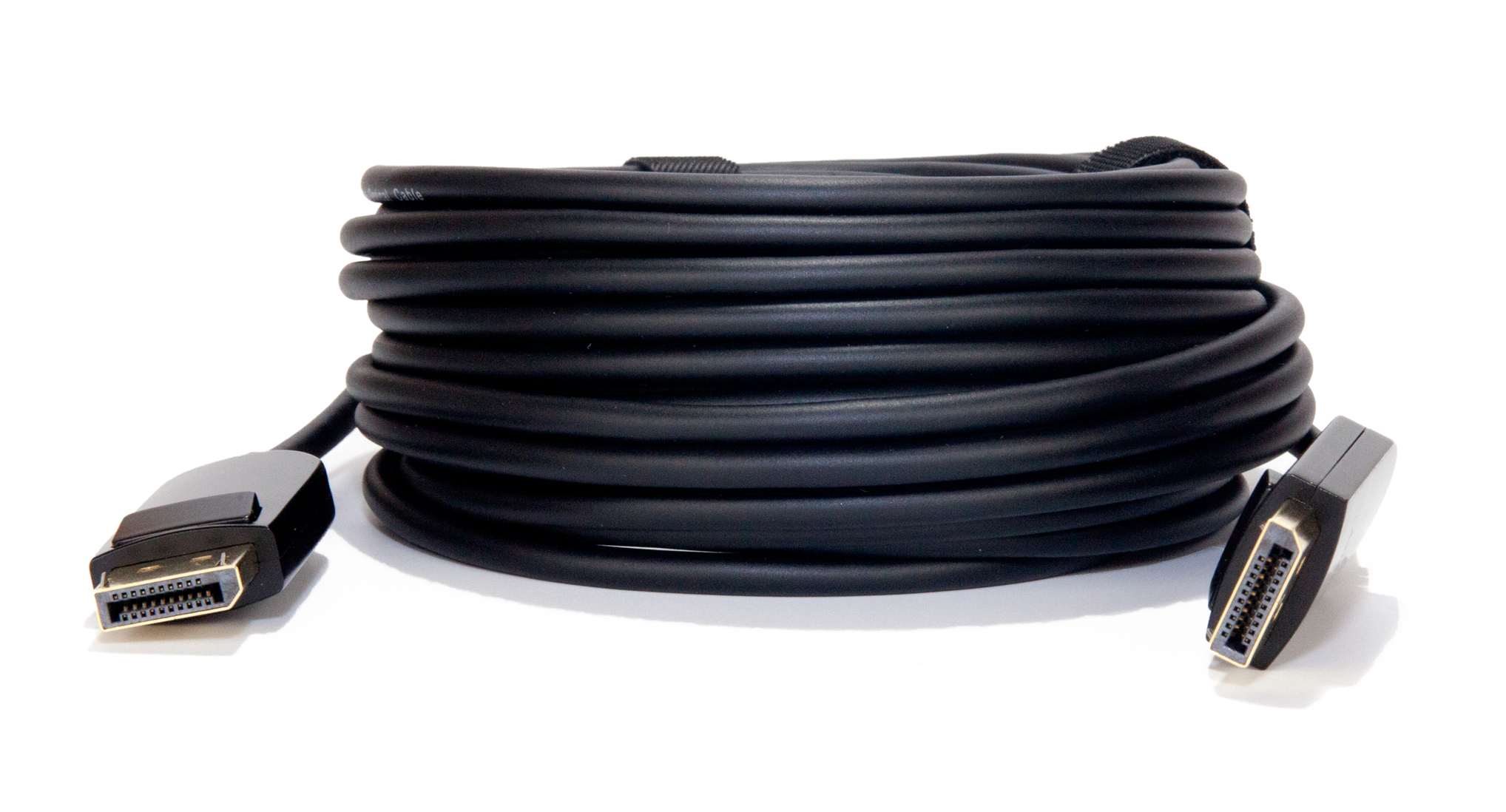

Luma DisplayPort Active Optical Cable

Luma DisplayPort Active Optical Cable provides EMI-free video connections at resolutions up to 8K. Instantly connect video components at up to 100' without the need for extenders or power supplies.

Documents

DisplayPort Connection Diagram

Specifications

Data rate: up to 32.4 Gbps
Resolution:
- 8K@30Hz, chrome 4:2:0 or VESA DSC
- 5K/4K@60Hz, chrome 4:4:4 uncompressed
Supported features:

HDCP v2.2
HDR
BT.2020

Connector size: 1.5” x .8” x .375”
38.1 x 20.3 x 9.5 mm
Cable diameter: 5mm
Cable bend radius: 20mm
Cable jacket rating: CL2

Available lengths

35'
40'
50'
60'
80'
100'
