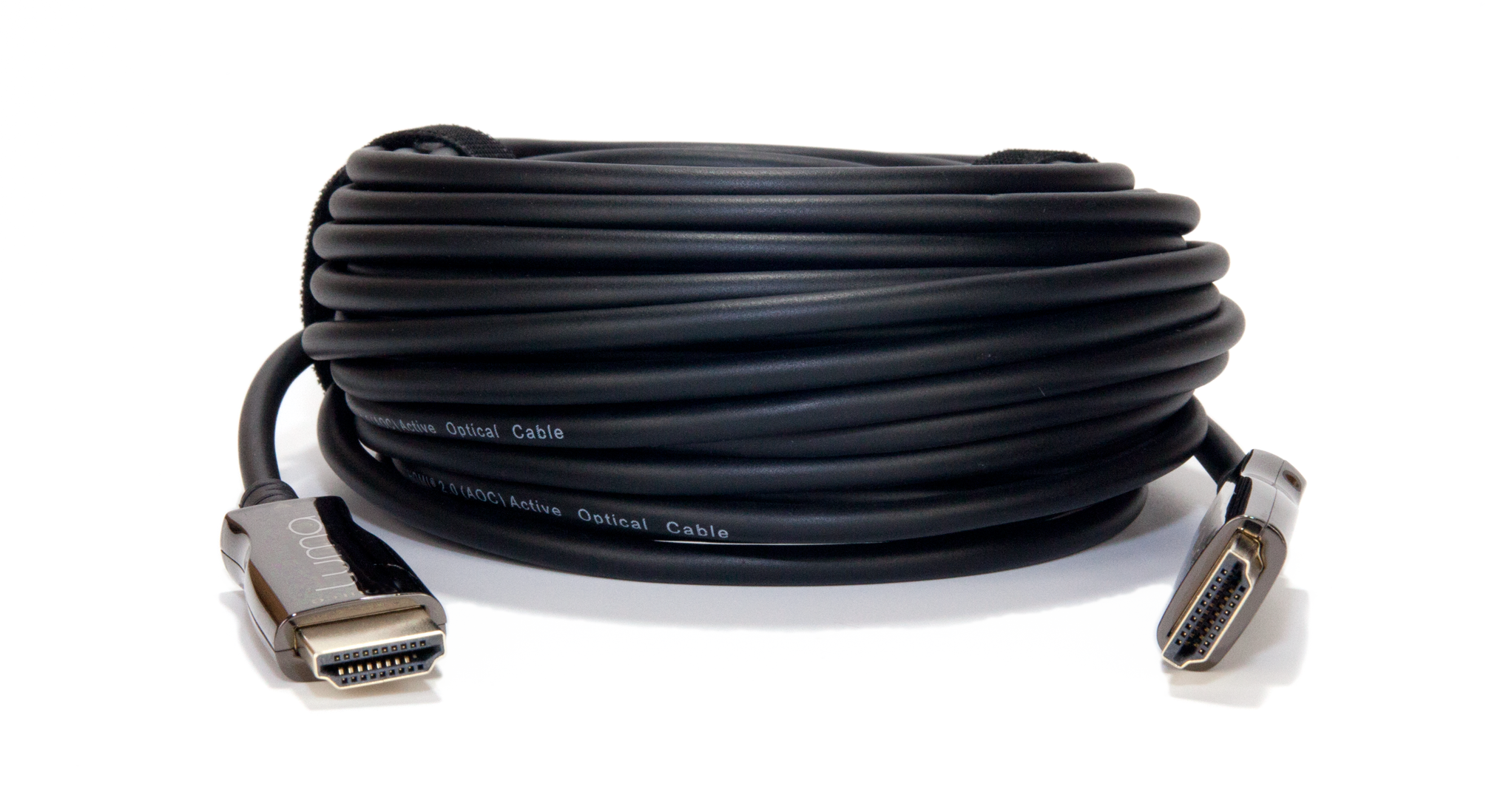

Luma HDMI Active Optical Cable

Luma HDMI Active Optical Cables provide EMI-free UHD for HDMI 2.1 video connections from Blu-ray, DVR, streaming devices and video game systems and 4K displays. Instantly connect A/V components at up to 100' at the best performance without extender boxes or external power supplies.

Documents

HDMI Connection Diagram

Specifications

Data rate: up to 48Gbps
Video resolution: up to 4K@60Hz and 4:4:4 color
Supported features:

HDMI 2.1
HDCP v2.2
HDR
CEC
ARC

Connector size: 1.67” x .75” x .31”
42.4 x 19 x 7.8 mm
Cable diameter: 5mm
Cable bend radius: 20mm
Cable jacket rating: CL2

Available lengths

35'
40'
50'
60'
80'
100'
